Description

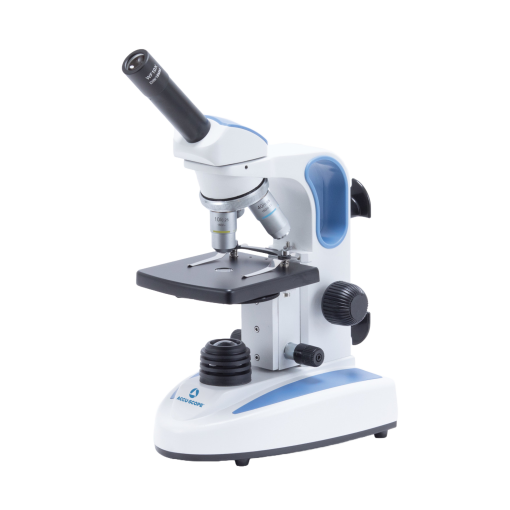

The ACCU-SCOPE EXM-150 Series microscopes are easy to use and student-friendly. Designed to provide educators with a high-performance, student-proof instrument at an affordable price, the EXM-150 Series is an excellent choice for high schools, middle schools, technical institutes, hobbyists, and home-school settings.
Highly portable, it features a built-in carry handle, cord wrap, and rechargeable LED illumination for corded or cordless operation. The EXM-150 microscope is available in various configurations to meet your specific needs.
| Feature | Details |
|---|---|
| Viewing Head | Monocular, dual inclined or inclined/vertical teaching head, inclined 45°; rotatable 360° |
| Stand | Cast aluminum alloy with built-in carry handle and cord hanger |
| Stage | 119mm x 119mm with stage clips, or factory-installed double-plate mechanical stage with low position controls and iris diaphragm |
| Power | Universal power supply (built-in), input 90-240VAC; built-in 4.5V/1000A charger for NiMH batteries |
| Optional Accessories | Viewing Heads: dual inclined or inclined/vertical teaching head. Eyepieces: 20x/12mm. Objectives: 20x, 60x*, 100x* oil (*spring-loaded) |
| Observation Method | DIN Optical System, f = 160mm |
| Objectives | Standard configuration includes DIN Achromat 4x, 10x, and 40x* objectives; EXM-151 models also include a 100x* oil immersion objective (*spring-loaded) |
| Nosepiece | Rear facing three-hole, ball-bearing nosepiece with positive click stops to ensure parcentration; a quadruple nosepiece is provided on the EXM-151 models |
| Illumination | Variable and rechargeable LED illuminator; LED illuminators last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours; three AA 1300mAh 1.2v NiMH (Nickel Metal Hydride) rechargeable batteries included |
| Focusing System | Separate coarse and fine focus adjustment controls; a tension adjustment is on the coarse control; a built- in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides |
| Eyepieces | WF10x eyepieces, 18mm field of view with pointer; eyepieces are locked-in to prevent classroom tampering |
| Condenser | N.A. 0.65 condenser with five aperture disc or iris diaphragm depending on the model; an N.A. 1.25 Abbe condenser with iris diaphragm on a spiral mount is supplied on all EXM-151 models |
| Accessories | Dust cover, instruction manual included |
Advanced Features are Built-In
